The Hidden Program Behind Every SQL Statement

When you write:

SELECT * FROM users;

it doesn’t feel like you’re instructing a machine. It feels descriptive. Almost polite. You state what you want, and SQLite handles the rest.

But inside the engine, nothing about that query is polite.

There is no magical “SELECT” operation.
There is no abstract relational operator floating around in memory.

Instead, SQLite builds a tiny program.

That program has instructions.
It has registers.
It has a program counter and it runs step by step like a miniature CPU.

The component responsible for this transformation is SQLite’s Virtual Database Engine (VDBE) its internal virtual machine. This is the layer where SQL stops being declarative text and becomes executable behavior.

Up to this point in the engine, everything has been structural or defensive.

The pager protects against hardware chaos. It coordinates locks and makes durability possible through journaling and WAL.

The B-tree layer maintains order keys, cells, balancing, splits, merges. The operating system reads and writes raw bytes.

But none of those layers understand SQL.

Only the Virtual Machine does.

SQL Is Compiled, Not Interpreted

One of the most important mental shifts is this:

SQLite does not execute SQL directly.

When you call:

sqlite3_prepare_v3(...)

SQLite does not store your SQL string and interpret it repeatedly. It compiles it.

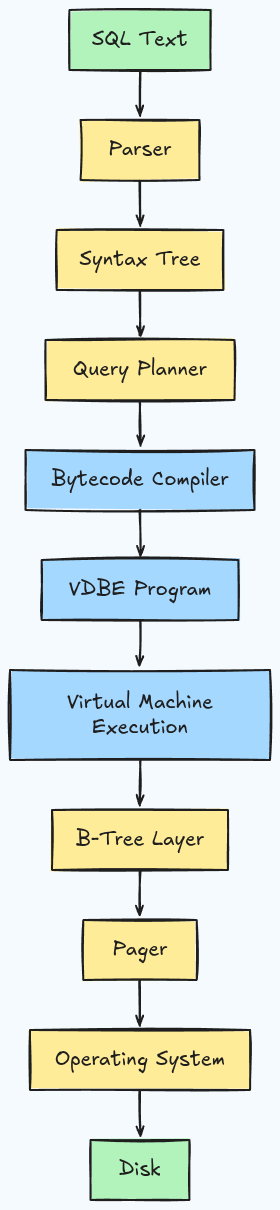

The Compilation Pipeline

The parser builds a syntax tree.
The query planner chooses a strategy.
Then a compiler emits bytecode, SQLite’s own tiny instruction language.

What you receive back as a sqlite3_stmt* is not a string wrapper.

It is a compiled program.

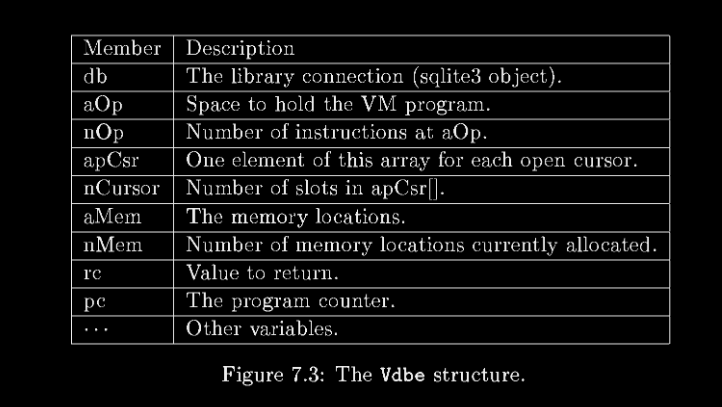

Internally, that prepared statement is a Vdbe object. It contains an array of instructions, a program counter, registers, cursor metadata, bound parameters, and execution state.

When you hold that pointer, you’re holding a small, purpose-built virtual computer that already knows exactly what to do.

Planning vs Execution

The planner has finished thinking.
The VM simply executes.

That separation is deliberate. Planning and execution are decoupled.

Once the VM begins running, it does not rethink strategy. It performs instructions faithfully.

Bytecode: SQLite’s Private Instruction Language

Take something simple:

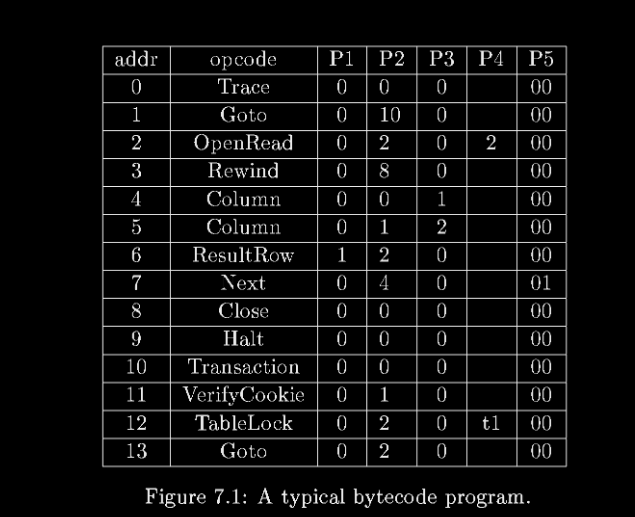

In the example shown in Figure, a simple SELECT * FROM t1 compiles into about 14 bytecode instructions.

Execution begins at address 0 and proceeds sequentially until:

• A HALT instruction is reached, or
• Control jumps beyond the final instruction

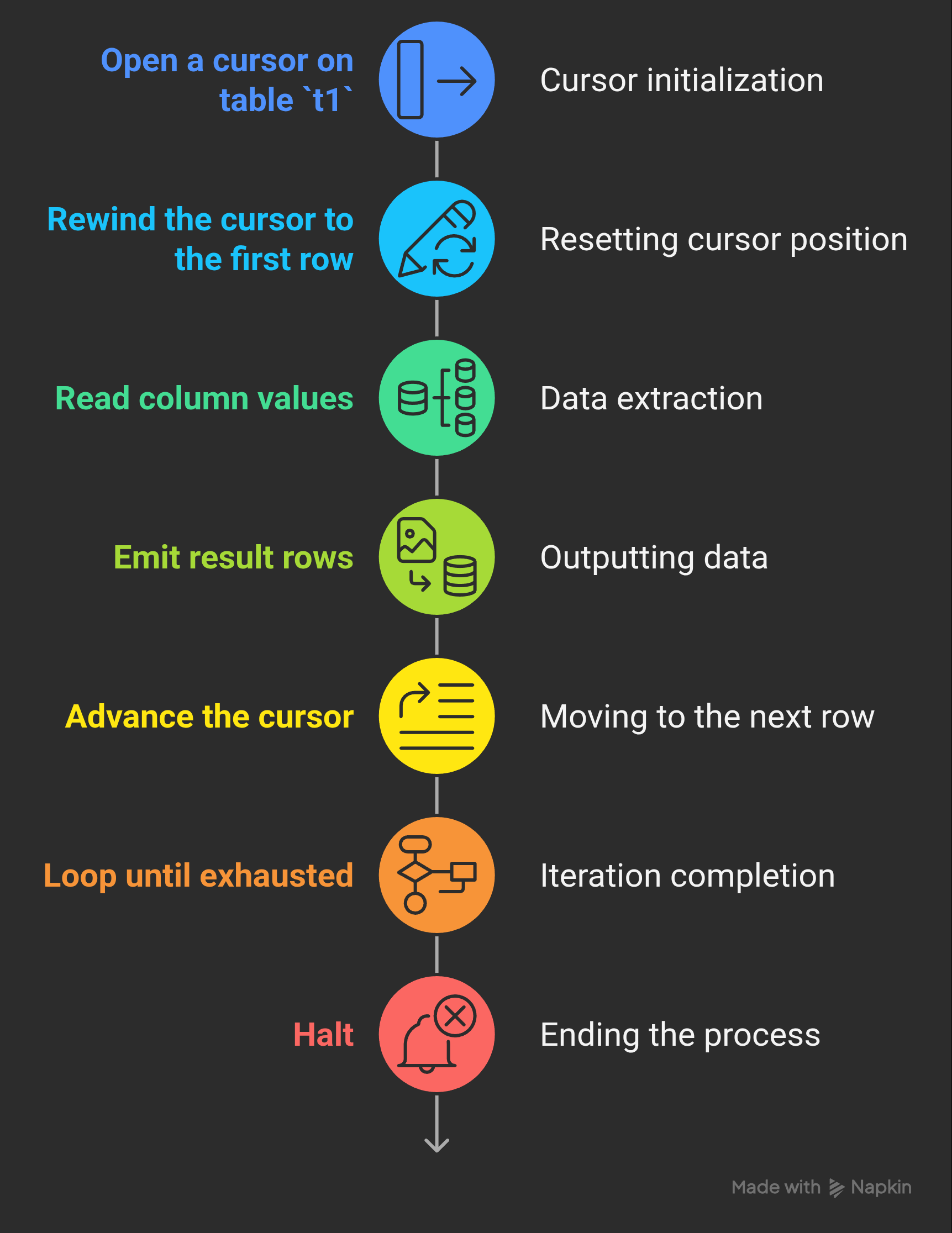

Even for such a simple query, the program must:

There is no “magic SELECT”. There is only a tiny, explicit program doing mechanical steps.

The Instruction Format

Each instruction is represented as a VdbeOp, conceptually structured like:

(opcode, P1, P2, P3, P4, P5)

The prepared statement is nothing more than a sequential array of these instructions.

There are no trees being walked at runtime.
No recursive descent.
No relational algebra operators dynamically evaluated.

Just a straight-line program with conditional jumps.

A Register Machine, Not a Stack Machine

SQLite’s VM is register-based.

That design choice matters.

Why Registers Instead of a Stack

Instead of pushing and popping values from a stack, the VM operates on numbered memory cells called registers.

Each register holds exactly one value at a time. The compiler assigns and reuses these registers aggressively, keeping memory usage tight and predictable.

You can imagine operations like:

R1 = 5
R2 = 10
Add R1, R2 → R3

Every expression in SQL ultimately reduces to operations on these registers.

Comparisons, arithmetic, string operations — all of them manipulate Mem structures stored in this register array.

That simplicity is part of why SQLite remains small and portable. The VM is conceptually closer to a tiny CPU than to a high-level interpreter.

The Five Primitive Types

Inside the VM, every value belongs to exactly one of five storage classes:

NULL, INTEGER, REAL, TEXT, or BLOB.

That’s it.

Typing Lives in the VM

These types exist both on disk (inside B-tree records) and in memory (inside registers). Type coercion happens exclusively inside the VM.

If you execute:

SELECT 5 + '10';

the VM performs conversion at runtime. The B-tree layer doesn’t care. The pager doesn’t care. They store and move bytes.

Type semantics are the VM’s responsibility.

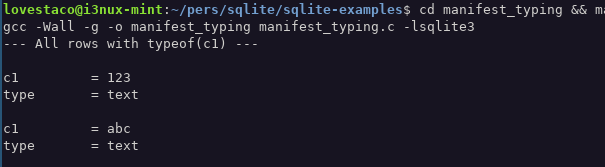

Manifest Typing in Motion

SQLite’s manifest typing model flows naturally from this.

Type belongs to the value, not rigidly to the column.

A single value like 123 might cache multiple representations integer, floating-point, or text but it always carries one canonical storage class flag.

This flexibility lives entirely in the VM layer.

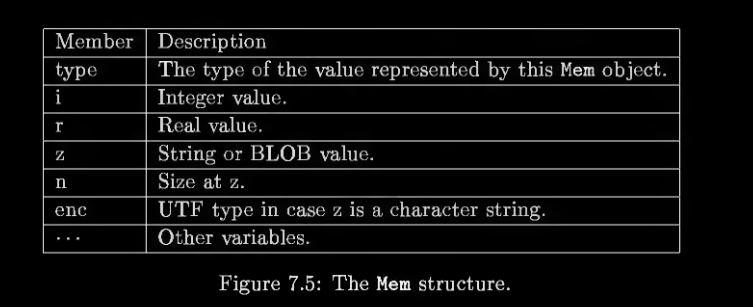

The Mem Structure: Where Values Actually Live

Each register in the VM is backed by a Mem structure.

The Anatomy of a Register Value

This structure contains the value itself, type flags, encoding metadata, and possibly cached alternate representations. It allows the VM to perform dynamic typing, comparisons, and expression evaluation efficiently.

When inserting rows, the VM eventually serializes register values into SQLite’s record format. Opcodes like MakeRecord build headers, encode serial types, and pack payloads into byte strings.

The B-tree layer never interprets fields. It simply stores blobs of bytes and maintains structural invariants.

The VM is the last layer that understands meaning.

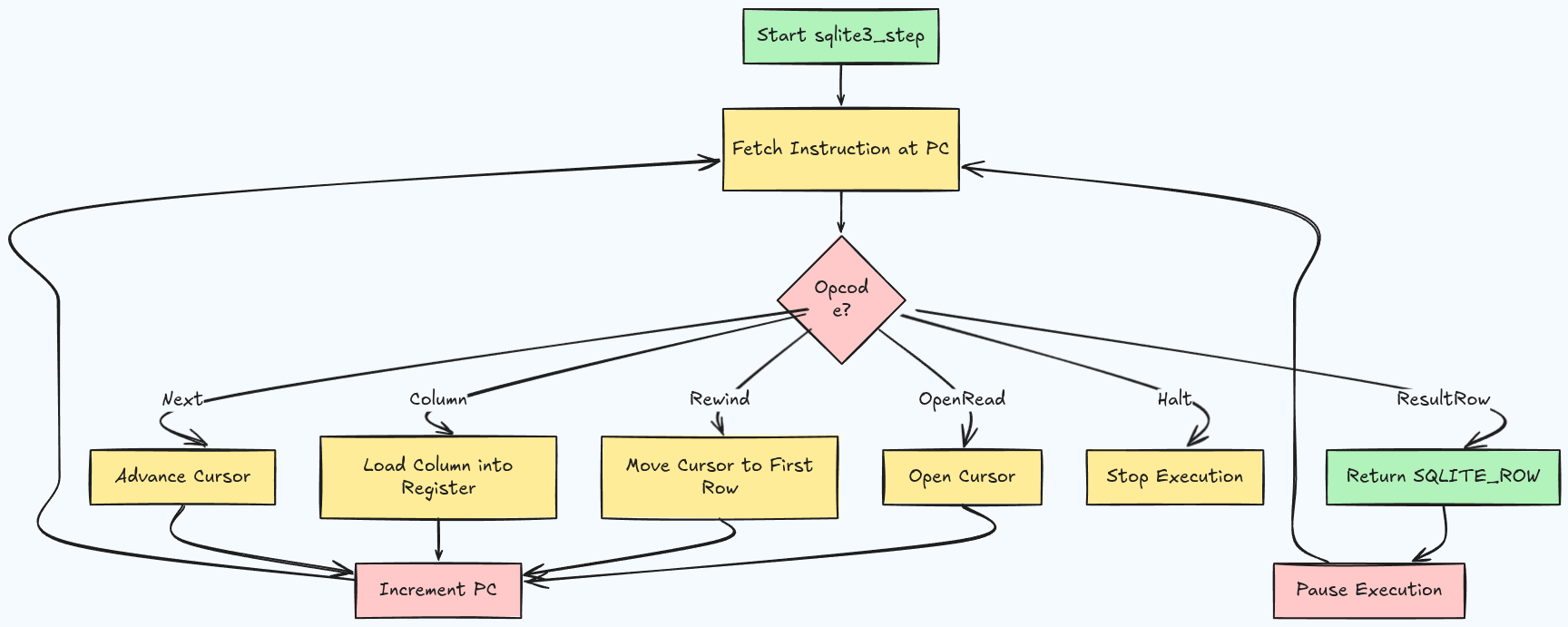

Execution: A Loop and a Switch

At runtime, everything funnels into a function called sqlite3VdbeExec.

Its structure is simple: a loop wrapped around a large switch statement.

The Execution Cycle

Each iteration:

1. Fetch the instruction at the current program counter.
2. Execute the corresponding opcode case.
3. Advance or modify the program counter.

Most instructions increment the counter.
Jump instructions overwrite it.

Execution continues until a Halt instruction is reached, an error occurs, or the instruction array is exhausted.

What an INSERT Really Does

Consider:

INSERT INTO T1 VALUES('Hello', 2000);

Behind the scenes, the VM executes a sequence that is far from trivial.

The Hidden Steps of an INSERT

It begins a write transaction. It verifies that the schema hasn’t changed. It opens a write cursor on T1. It generates a rowid if necessary. It serializes the values using MakeRecord. It inserts the record into the B-tree.

If indexes exist, it constructs and inserts additional index entries. Then it closes cursors and halts.

Every data modification reduces to two essential actions:

Build a record.
Insert it into a B-tree.

The B-tree handles balancing and page splits.
The pager handles journaling and durability.
The VM orchestrates everything.

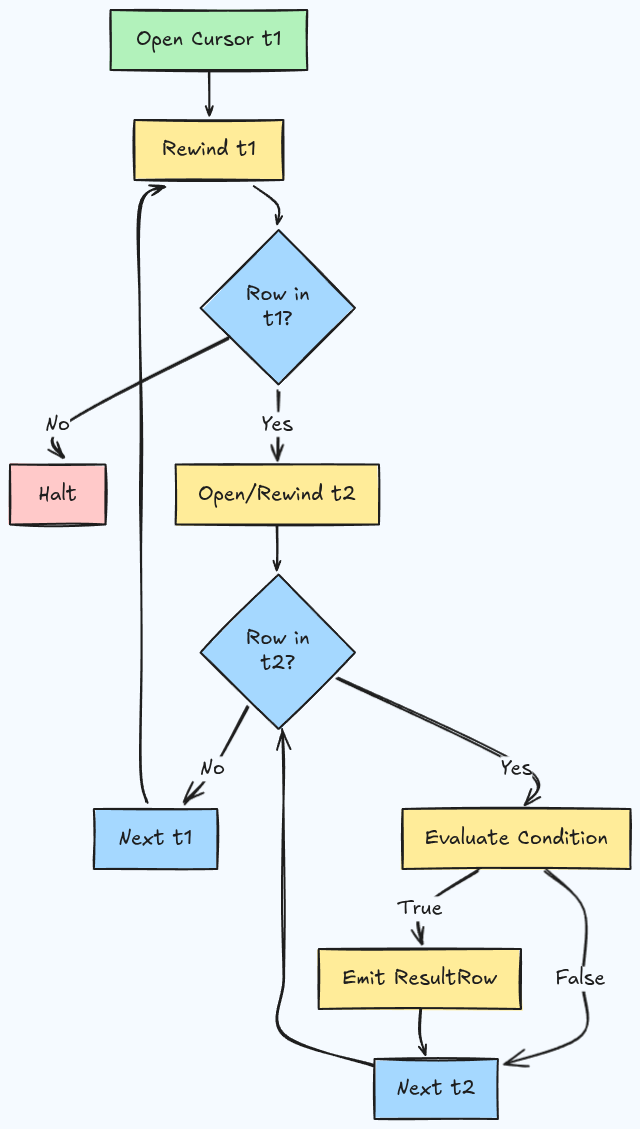

How JOIN Actually Executes

Even something conceptually “high-level” like a JOIN ultimately becomes nested loops.

For:

SELECT * FROM t1, t2 WHERE condition;

the planner emits bytecode that opens cursors for both tables.

Nested Loops, Not Magic

The VM rewinds the outer cursor. For each row in the outer table, it rewinds the inner cursor. For each inner row, it evaluates the condition. If true, it emits a result row. Then it advances cursors and repeats.

There is no abstract “join engine” running at runtime.

Only cursor movement, comparisons, and jumps.

If indexes exist, the planner changes the bytecode, perhaps replacing full scans with seeks. But the VM still executes a linear instruction stream.

Declarative SQL becomes procedural mechanics.

Why This Architecture Works So Well

The VM architecture makes SQLite transparent and debuggable in a way many database engines are not.

Clean Separation of Responsibilities

Because every statement becomes an explicit program, developers can print bytecode, trace execution, inspect registers, and understand precisely what is happening.

The separation of responsibilities is clean:

The parser builds structure.
The planner chooses strategy.
The compiler emits instructions.
The VM executes.
The B-tree maintains order.
The pager defends against hardware failure.

Each layer does one thing.

And at the center of it all sits a small, deterministic interpreter.

SQL feels abstract and declarative.

But inside SQLite, it is compiled into a mechanical script that runs instruction by instruction, manipulating registers, moving cursors, and calling into lower layers.

That tiny virtual machine is simple, disciplined, and predictable — is what transforms human intent into durable bytes on disk.

That is where SQL truly comes alive.
